Mold making for internal thread parts

Mold making for internal thread parts are usually assist by Hydro-cylinder or Motor moving for mold release. Here is motor solution for internal thread cap.

motor mould - Mold making for internal thread parts

Product Details:

  • Product name: Internal thread mold
  • Standard: DME component
  • Steel: H13
  • Plastic: HDPE
  • Cavities: 1×4
  • Surface finish: Paper 400#
  • Runner system: Cold
  • Cycle time: 75s
  • Tolerance: +/-0.02mm
  • Dimensions: 400 X 300 X 350mm
  • Mold life: 1 million shots
  • Lead time: 5 weeks

Description:

Unscrewing mold for Internal thread parts, hydro-cylinder solution, DME standard, H13 steel apply in industry

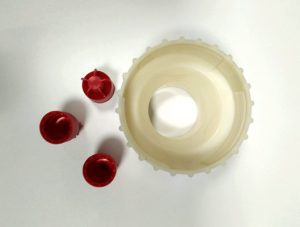

Internal thread Molded Parts

plastic moulded part10 300x227 - Mold making for internal thread partsinternal thread moulded 300x227 - Mold making for internal thread parts

Mold Design

Mold design is including DFM,  Mold Flow Analysis, 2D Mold Layout and 3D Mold Drawing. It is part lay out, part line making, gate design, runner design, gating way, ejection method, cooling layout, etc.

Mold Making

Mold making is based on mold making and purchase mold base, steel and component by machined by CNC, EDM, Lathe, Gun Drill and Milling etc., make mold fitting and mold trial in the end. To see the idea into real by mass production.

Mold Trial

Mold trial is the last processing to check if the work is making well. You will get the molded part to inspection specification. Make decision if itt is ok or NG after mold trial.

Mould Precision Co., Ltd. is a high quality plastic injection mold manufacturer, with rich experience in unscrewing mold making and manufacturing, with competitive price and on time deliver.
