Mold making for external thread part

unscrewing mold

External thread part is usually made by sliders for mold release.  It should be use Hydro-cylinder if it must be no part line on thread for external thread mold making. Here is the 1 cavity mold making for external thread fitting pipe.

plastic moulding part6 - Mold making for external thread part

Product Details:

  • Product name: External thread mold
  • Standard: HASCO component
  • Steel: 1.2344
  • Plastic: PA66
  • Cavities: 1×8
  • Surface finish: VDI 24
  • Runner system: Cold
  • Cycle time: 65s
  • Tolerance: +/-0.02mm
  • Dimensions: 600 X 450 X 350mm
  • Mold life: 1 million shots
  • Lead time: 6 weeks

Description:

Unscrewing mold for external thread part, slider solution, HASCO standard, 1.2344 steel apply in industry

External Thread Molded Parts

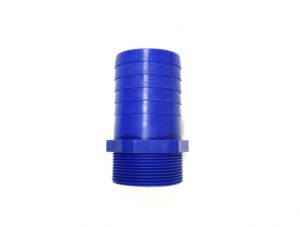

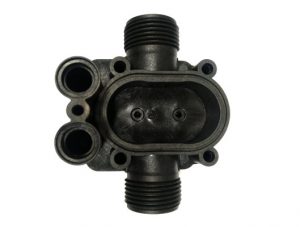

pipe part1 300x227 - Mold making for external thread partexternal thread moulded 300x227 - Mold making for external thread part

Mold Design

Mold design is including DFM,  Mold Flow Analysis, 2D Mold Layout and 3D Mold Drawing. It is part lay out, part line making, gate design, runner design, gating way, ejection method, cooling layout, etc.

Mold Making

Mold making is based on mold making and purchase mold base, steel and component by machined by CNC, EDM, Lathe, Gun Drill and Milling etc., make mold fitting and mold trial in the end. To see the idea into real by mass production.

Mold Trial

Mold trial is the last processing to check if the work is making well. You will get the molded part to inspection specification. Make decision if itt is ok or NG after mold trial.

Mould Precision Co., Ltd. is a high quality plastic injection mold manufacturer, with rich experience in unscrewing mold making and manufacturing, with competitive price and on time deliver.
