Exchange core & cavity mold making for gears

Exchange core & cavity mold making for gears, it is one of good solutions for gear mold making. As it save cost of mold base.

exchange gears mold - Exchange core & cavity mold making for gears

Product Details:

  • Product name: Exchange core & cavity mold
  • Industries: Industry
  • Mold base: HASCO
  • Steel: 1.1714
  • Plastic: POM
  • Cavities: 1×1
  • Runner system: Cold
  • Cycle time: 65s
  • Tolerance: +/-0.05mm
  • Dimensions: 250 X 250 X 300mm
  • Mold life: 300,000 shots
  • Lead time: 6 weeks
  • Packing: Plywood

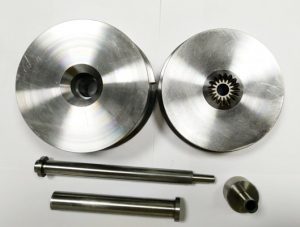

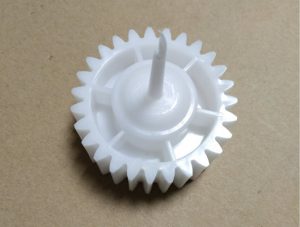

Exchange Core & Cavity Molded part

exchange core cavity 300x227 - Exchange core & cavity mold making for gearsexchange molded7 300x227 - Exchange core & cavity mold making for gears

Mold Design

Mold design is including DFM,  Mold Flow Analysis, 2D Mold Layout and 3D Mold Drawing. It is part lay out, part line making, gate design, runner design, gating way, ejection method, cooling layout, etc.

Mold Making

Mold making is based on mold making and purchase mold base, steel and component by machined by CNC, EDM, Lathe, Gun Drill and Milling etc., make mold fitting and mold trial in the end. To see the idea into real by mass production.

Mold Trial

Mold trial is the last processing to check if the work is making well. You will get the molded part to inspection specification. Make decision if it is ok or NG in the end.

Mould Precision Co., Ltd. is a high quality plastic injection mold manufacturer in China, with rich experience in exchange core & cavity mold making and manufacturing, with competitive price and on time deliver.
