Pipe fitting mold making – Core Puller mold design of Pipe with Bend and ARC.

Pipe fitting mold making is very difficult, especially when the part has both Band and ARC. Now we analysis the project in order to see how difficult it is. First, let’s look at the part.

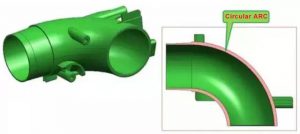

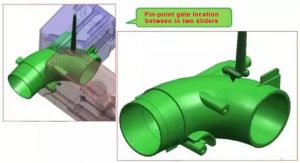

1. Pin-piont gate location on the part

pipe mold1 300x134 - pipe fitting mold makingpipe mold2 300x163 - pipe fitting mold making

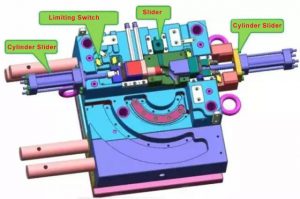

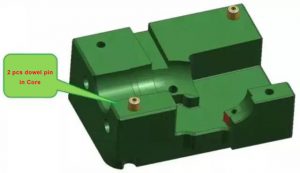

2. Core &  adds two dowel pins on core

pipe mold5 300x199 - pipe fitting mold makingpipe mold4 300x173 - pipe fitting mold making

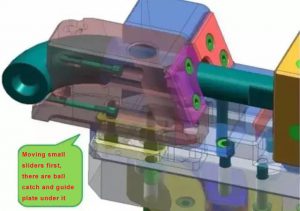

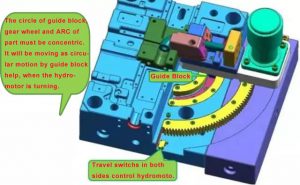

3. Bend Pipe Core pillar graphic

pipe mold6 300x211 - pipe fitting mold makingpipe mold7 300x185 - pipe fitting mold making

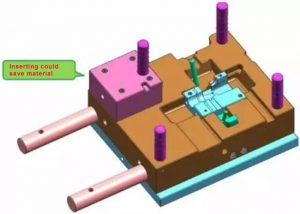

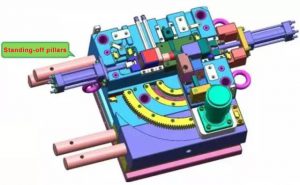

4. Cavity & Core

pipe mold8 300x214 - pipe fitting mold makingpipe mold9 300x185 - pipe fitting mold making

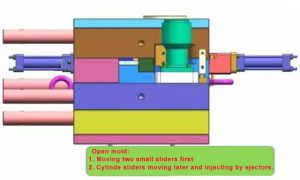

5. Mold move recycling

pipe mold10 300x180 - pipe fitting mold making

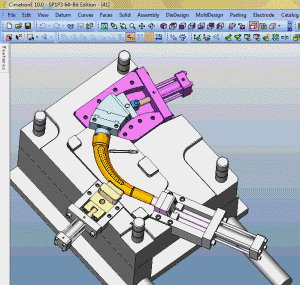

6. More Pipe Fitting Mold Moving graphic

pipe fitting mold moving - pipe fitting mold makingpipe fitting mold moving1 - pipe fitting mold making
