mold making procedure

The high quality mold or molded parts start with a great mold design

Here is mold making procedure. We begin DFM after you place order. Thanks for provide injection machine data, such as or K.O location, Moveable Distance, O Ring Diameter etc.

Our engineers have many years’ experience at injection mold design, usually the process is:
DFM > 2D Mold Layout > MoldFlow Analysis > 3D Mold Design

1) DFM(1-3 days)

*DFM(Design For Manufacturing-it is draft design with Mold Flow Analysis if custom require.

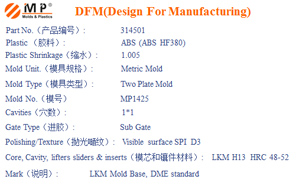

DFM 1 - mold making procedureDFM 2 - mold making procedure

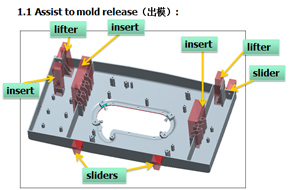

DFM 21 - mold making procedureDFM 3 - mold making procedure

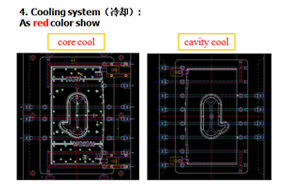

DFM 4 - mold making procedureDFM 5 - mold making procedure

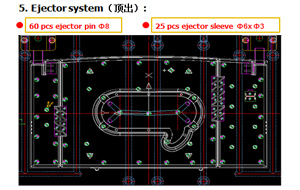

DFM 6 - mold making procedureDFM 7 - mold making procedure

2) 2D Mold Layout

We believe high quality molds or plastic parts start with a great mold design.so we pay special attention to plastic mold construction, gates, runners, cooling system, ejector system, venting and mechanical function to ensure the best solution are used.

3) Moldflow Anaylsis(if possible)

Professional mold flow analysis can figure out mold defects that may exist in advance, save your cost on plastic injection mold testing and modification.

Optimization plastic injection solution to help to determine the best hot runner position and help to identify whether there is an shrinkage, combined with the location of the line, reduce deformation, improve the cooling efficiency and shorten the injection molding cycle time as much as possible, a definite advantage to high volume mold making.

4) 3D Mold Design

DFM 2D mold - mold making procedureDFM 3D mold - mold making procedure
