Family mold making company in China

We are family mold making company in China, offer plastic injection mold making service. Family mold is made 2 different parts or more in a mold. It is popular for mold making for Toys. It could save much cost for mold making.

Pls take care the different of family mold and multi-cavity mold. Family mold is different part in one mold, but multi-cavity mold is the same part with copy in one mold.

Family mold could make for two different plastic material or different color by switch gate. It is very flexible.

mold design 1 - Family mold making company in China

Product Details:

  • Product name: Family mold
  • Standard: DME Component
  • Steel: H13
  • Plastic: ABS
  • Cavities: 1+1
  • Surface finish: Paper 400#
  • Runner system: Cold
  • Cycle time: 75s
  • Tolerance: +/-0.03mm
  • Dimensions: 500 X 300 X 300mm
  • Mold life: 0.5 million shots
  • Lead time: 4 weeks


Cold runner family mold, DME Component, H13 steel heat treatment apply in Electronics industry

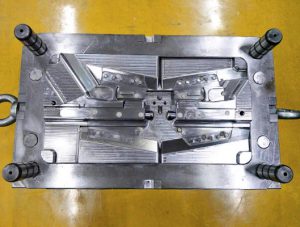

Family mold & Molded part

mould fitting 300x227 - Family mold making company in China  plastic moulded part1 300x227 - Family mold making company in China

Mold Design

Mold design is including DFM,  Mold Flow Analysis, 2D Mold Layout and 3D Mold Drawing. It is part lay out, part line making, gate design, runner design, gating way, ejection method, cooling layout, etc.

Mold Making

Mold making is based on mold making and purchase mold base, steel and component by machined by CNC, EDM, Lathe, Gun Drill and Milling etc., make mold fitting and mold trial in the end. To see the idea into real by mass production.

Mold Trial

Mold trial is the last processing to check if the work is making well. You will get the molded part to inspection specification. Make decision if it is ok or NG in the end.

Mould Precision Co., Ltd. is a high quality plastic injection mold manufacturer in China, with rich experience in family mold making and manufacturing, with competitive price and on time deliver.
