Solid mold maker in China

We are solid mold maker in China, offer plastic injection mold making service. Solid mold is casting core & cavity from B plate and A plate directly. It is a solid part, so called solid mold. It make for large mold, as it could save much cost.

Difference between solid mold & insert mold

As we all know, most mold making is fitting core and cavity into B plate and A plate. Solid mold also called no insert mold, there is solid core and cavity directly casting from A plate and B plate.

solid mould - Solid mold maker in China

Product Details:

  • Product name: Solid mold
  • Industries: Industrial
  • Mold Standard: DME
  • Steel:  P20
  • Cavities: 1 x 1
  • Plastic: ABS
  • Runner system: Cold
  • Cycle time: 135s
  • Gate: Direct
  • Dimensions: 1000 X 1000 X 650mm
  • Mold life: 500,000 shots
  • Lead time: 7 weeks

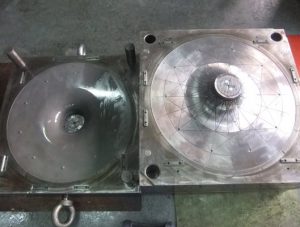

Solid mold & Molded part

solid mould1 300x227 - Solid mold maker in Chinasolid moulded part 300x227 - Solid mold maker in China

Mold Design

Mold design is including DFM,  Mold Flow Analysis, 2D Mold Layout and 3D Mold Drawing. It is part lay out, part line making, gate design, runner design, gating way, ejection method, cooling layout, etc.

Mold Making

Mold making is based on mold making and purchase mold base, steel and component by machined by CNC, EDM, Lathe, Gun Drill and Milling etc., make mold fitting and mold trial in the end. To see the idea into real by mass production.

Mold Trial

Mold trial is the last processing to check if the work is making well. You will get the molded part to inspection specification. Make decision if it is ok or NG in the end.

Mould Precision Co., Ltd. is a high quality plastic injection mold manufacturer in China, with rich experience in solid mold making and manufacturing, with competitive price and on time deliver.
