PVC connector mold

Mould Precision Co., Ltd. has rich experience in PVC connector mold making and making in China, with competitive price and flexbile lead time. It is 1×4 cavities, with 420H steel for core and cavity, as it needs to be resistant to corrosion.

PVC connector mould - PVC connector mold

Product Details:

  • Product name: PVC connector mold
  • Industries: Industrial
  • Mold Standard: HASCO
  • Steel: 420H 48-52HRC
  • Cavities 1 x 4
  • Plastic: PVC
  • Runner system: Cold
  • Cycle time: 75s
  • Gate: sub
  • Dimensions: 450 X 450 X 400mm
  • Mold life: 500,000 shots
  • Lead time: 5 weeks

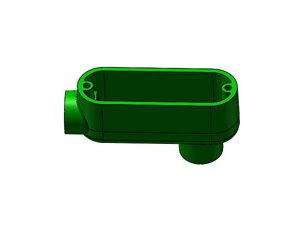

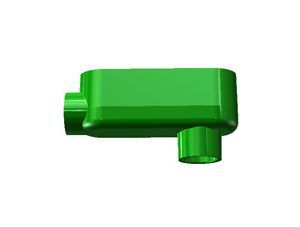

PVC Connector Molded Parts

PVC connector 300x227 - PVC connector moldPVC connector1 300x227 - PVC connector mold

Mold Design

Mold design is including DFM,  Mold Flow Analysis, 2D Mold Layout and 3D Mold Drawing. It is part lay out, part line making, gate design, runner design, gating way, ejection method, cooling layout, etc.

Mold Making

Mold making is based on mold making and purchase mold base, steel and component by machined by CNC, EDM, Lathe, Gun Drill and Milling etc., make mold fitting and mold trial in the end. To see the idea into real by mass production.

Mold Trial

Mold trial is the last processing to check if the work is making well. You will get the molded part to inspection specification. Make decision if itt is ok or NG after mold trial.

Mould Precision Co., Ltd. is a high quality plastic injection mold manufacturer, with rich experience in PVC connector mold making and manufacturing, with competitive price and on time deliver.
