Pipe fitting mold

Pipe fitting mold is use hydro-cylinder for mold release help. Collapsible Core is good solution for pipe fitting mold making. Here is slider solutions, which is oblique silder over slider.

Pipe fitting mould - Pipe fitting mold

Product Details:

  • Product name: Pipe Fitting Mold
  • Standard: Custom
  • Steel: 420SS
  • Plastic: PVC
  • Cavities: 1×2
  • Surface finish: Paper 400#
  • Runner system: Cold
  • Cycle time: 75s
  • Tolerance: +/-0.02mm
  • Dimensions: 600 X 450 X 400mm
  • Mold life: 0.3 million shots
  • Lead time: 6 weeks

Description:

Pipe Fitting Mold, Customer mold, 420SS steel apply in industry

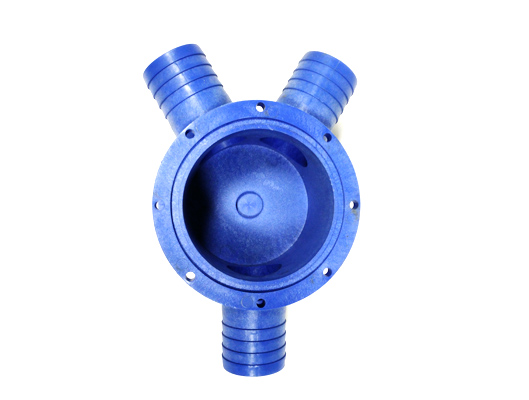

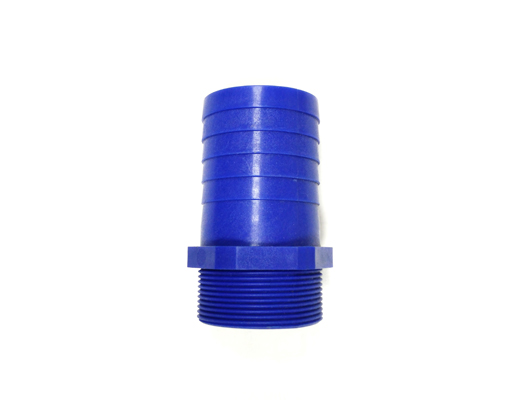

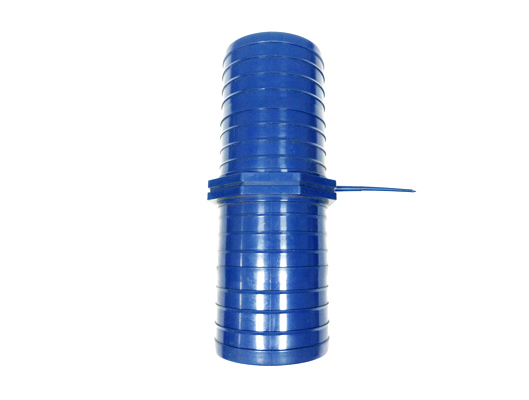

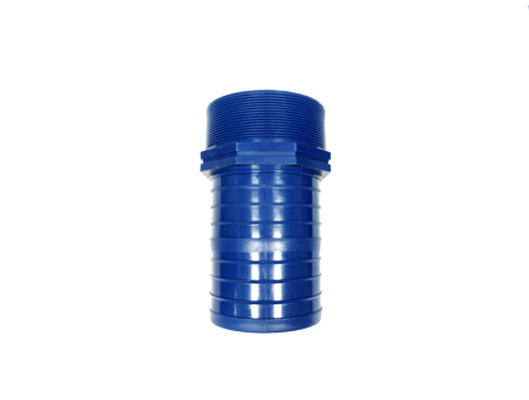

Pipe fitting molded Parts

Mold Design

Mold design is including DFM,  Mold Flow Analysis, 2D Mold Layout and 3D Mold Drawing. It is part lay out, part line making, gate design, runner design, gating way, ejection method, cooling layout, etc.

Mold Making

Mold making is based on mold making and purchase mold base, steel and component by machined by CNC, EDM, Lathe, Gun Drill and Milling etc., make mold fitting and mold trial in the end. To see the idea into real by mass production.

Mold Trial

Mold trial is the last processing to check if the work is making well. You will get the molded part to inspection specification. Make decision if itt is ok or NG after mold trial.

Mould Precision Co., Ltd. is a high quality plastic injection mold manufacturer, with rich experience in Pipe fitting mold making and manufacturing, with competitive price and on time deliver.
