Insert mold making company in China

We could make insert mold by put insert metal, ceramic or plastic pieces into molten thermoplastic. The inserts can be threaded or other attachments to join custom parts to one another.

Insert molding can reduce cost by embedding secondary parts into the plastic injection molding process, as opposed to installing the parts after molding. By integrating the inserts at the time of molding, the parts become more robust compared to staking the pieces in post-molding. Of course, the insert pieces must be able to withstand the high-temperature and pressure of the injection molding process.

insert moulded parrt1 - Insert mold making company in China

Product Details:

  • Product name: Insert mold
  • Industries: Electronics
  • Mold base: LKM
  • Steel: H13
  • Plastic: ABS
  • Cavities: 1×2
  • Runner system: Cold
  • Cycle time: 90s
  • Tolerance: +/-0.02mm
  • Dimensions: 500 X 450 X 300mm
  • Mold life: 1 million shots
  • Lead time: 5 weeks
  • Packing: Plywood

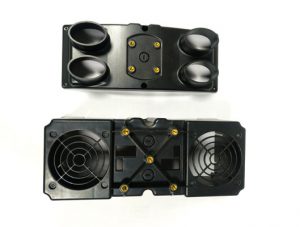

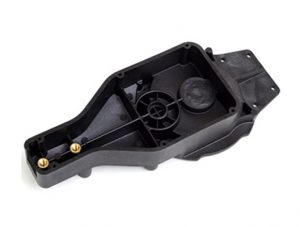

Insert Molded part

plastic moulded part3 300x227 - Insert mold making company in Chinainsert moulded1 1 300x227 - Insert mold making company in China

Mold Design

Mold design is including DFM,  Mold Flow Analysis, 2D Mold Layout and 3D Mold Drawing. It is part lay out, part line making, gate design, runner design, gating way, ejection method, cooling layout, etc.

Mold Making

Mold making is based on mold making and purchase mold base, steel and component by machined by CNC, EDM, Lathe, Gun Drill and Milling etc., make mold fitting and mold trial in the end. To see the idea into real by mass production.

Mold Trial

Mold trial is the last processing to check if the work is making well. You will get the molded part to inspection specification. Make decision if it is ok or NG in the end.

Mould Precision Co., Ltd. is a high quality plastic injection mold manufacturer in China, with rich experience in no insert mold making and manufacturing, with competitive price and on time deliver.
