Copy mold making in China

Copy mold, HASCO Component, 1.2714 steel apply in industry

Copy mold is the same as mold making before. Usually  it is making as the mold can’t meet the mass molding production. Copy mold making could only save time and cost for design, all material and machined must be the same as before.

plastic injection mould2 - Copy mold making in China

Product Details:

  • Product name: Copy mold
  • Standard: HASCO Component
  • Steel: 1.2344
  • Plastic: ABS
  • Cavities: 1 x 4
  • Surface finish: Sand Paper 400#
  • Runner system: Cold
  • Cycle time: 75s
  • Tolerance: +/-0.02mm
  • Dimensions: 400 X 200 X 300mm
  • Mold life: 1 million shots
  • Lead time: 5 weeks

Copy mold

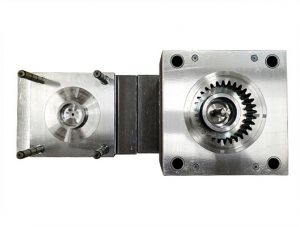

plastic mould 1 300x227 - Copy mold making in China plastic mould 1 300x227 - Copy mold making in China

Mold Design

Mold design is including DFM,  Mold Flow Analysis, 2D Mold Layout and 3D Mold Drawing. It is part lay out, part line making, gate design, runner design, gating way, ejection method, cooling layout, etc.

Mold Making

Mold making is based on mold making and purchase mold base, steel and component by machined by CNC, EDM, Lathe, Gun Drill and Milling etc., make mold fitting and mold trial in the end. To see the idea into real by mass production.

Mold Trial

Mold trial is the last processing to check if the work is making well. You will get the molded part to inspection specification. Make decision if itt is ok or NG after mold trial.

Mould Precision Co., Ltd. is a high quality plastic injection mold manufacturer in China, with rich experience in copy mold making and manufacturing, with competitive price and on time deliver.
